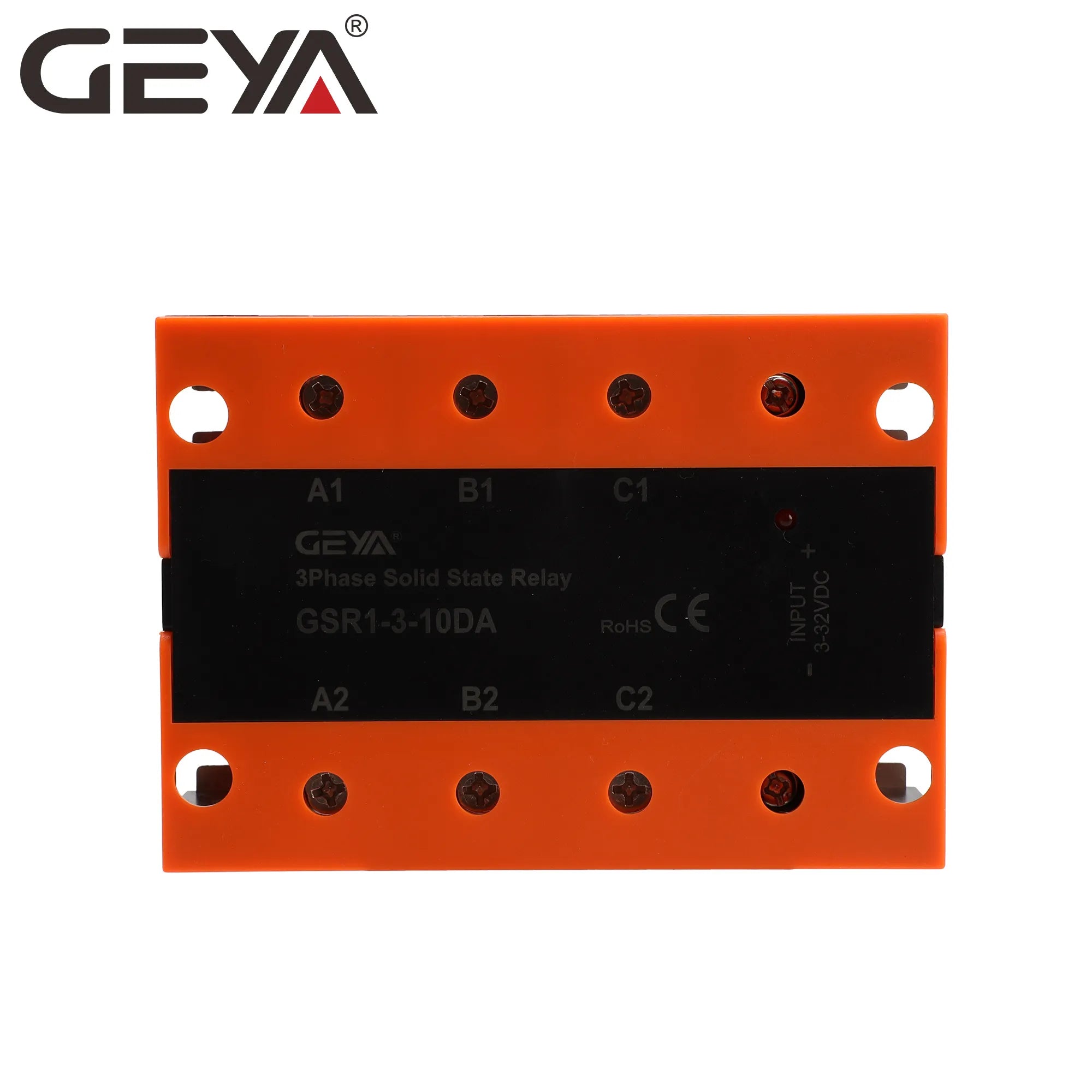

GSR1-3 10A DC to AC SSR 3 Phase solid state relay
GSR1-3-3 phase solid state relay
3 phase ssr
solid state contactor relay gsr1 3
trigger a solid state relay with a current sensing relay
GSR1-3-7 geya
DC to AC Solid State Relay (SSR) GSR1-3
GSR1-3 10A DC to AC SSR 3 Phase solid state relay
GSR1-3-3 phase solid state relay
3 phase ssr
solid state contactor relay gsr1 3
trigger a solid state relay with a current sensing relay
GSR1-3-7 geya
DC to AC Solid State Relay (SSR) GSR1-3
Description
Description
x

The GSR1-3 10A DC to AC Solid State Relay (SSR) offers reliable and efficient switching for your industrial applications. Designed to convert DC control signals into AC power, this high-performance SSR provides silent, fast, and durable switching for three-phase AC systems. With a 10A current rating, the GSR1-3 is perfect for controlling high-power loads such as motors, pumps, and heating elements.

Key Features:

  • 10A Current Rating: Medium to high-power industrial applications.
  • DC to AC Switching: Converts DC control signals to AC power without loss, for perfect control.
  • Silent Operation: Without any mechanical parts, quiet, and wear-free operation.
  • High Durability: Constructed to operate in the most adverse conditions, this SSR is durable and long-lasting.
  • Energy Efficiency: Consumes very low power and enhances overall system efficiency.

Benefit of this product:

The GSR1-3 10A DC to AC Solid State Relay (SSR) incorporates a number of valuable features that result in the best choice of applications requiring industrial and automation use:

  • Reliable and Long Life Operational Performance
  • Fast and Precise Switching
  • Silent Operation
  • Energy Efficiency
  • Enhanced Safety
  • Space-saving design
  • Wide Range of Applications
  • Low Maintenance

The GSR1-3 10A DC to AC SSR offers an impressive combination of efficiency, durability, and performance, thereby ensuring high-quality enhancement in industrial system control and reliability.

Technical Parameters

Model: GSR1-3 10A
Control: DC to AC
Minimum control current : 5mA
Maximum control current: 10mA
Output voltage range: 24-480VAC
On-off response delay: ≤10ms
Saturation voltage drop in On state: ≤ 1.5V
Insulation resistance: 1000MΩ/500VDC

Order Your GSR1-3 10A DC to AC SSR Phase Solid State Relay Today!

Experience the reliability and precision of the GSR1-3 10A DC to AC SSR 3 Phase Solid State Relay.

Technical Data
Technical Data
x
Control voltage range 70-280VAC
Minimum control current 5mA
Maximum control current 10mA
Ensure the voltage is switched on 90VAC
Ensure that the shutdown voltage 50VAC
Output voltage range 24-480VAC
Specifications/Maximum Load Current 10A, 25A, 40A, 60A, 80A, 100A, 120A, 200A
Peak Voltage 800VAC, 800VAC, 800VAC, 1200VAC, 1200VAC, 1200VAC, 1200VAC, 1200VAC
Insulation resistance 1000MΩ/500VDC
Leakage current in OFF state ≤8mA rms ≤8mA rms ≤8mA rms ≤2mA rms ≤2mA rms ≤2mA rms ≤2mA rms ≤2mA rms
Saturation voltage drop in On state ≤ 1.5V
On-off response delay ≤10ms
size 105L×74W×33H
weight 500g
Insulation withstand voltage between input and output 2500V rms
Insulation withstand voltage between input and output and encloser ambient temperature 4000V rms
environment temperature -20°~75°C
Installation bolt fixing
Certification CE
