Description
Description
x

GRI8-01 Overcurrent Protection
GRI8-02 Undercurrent Protection

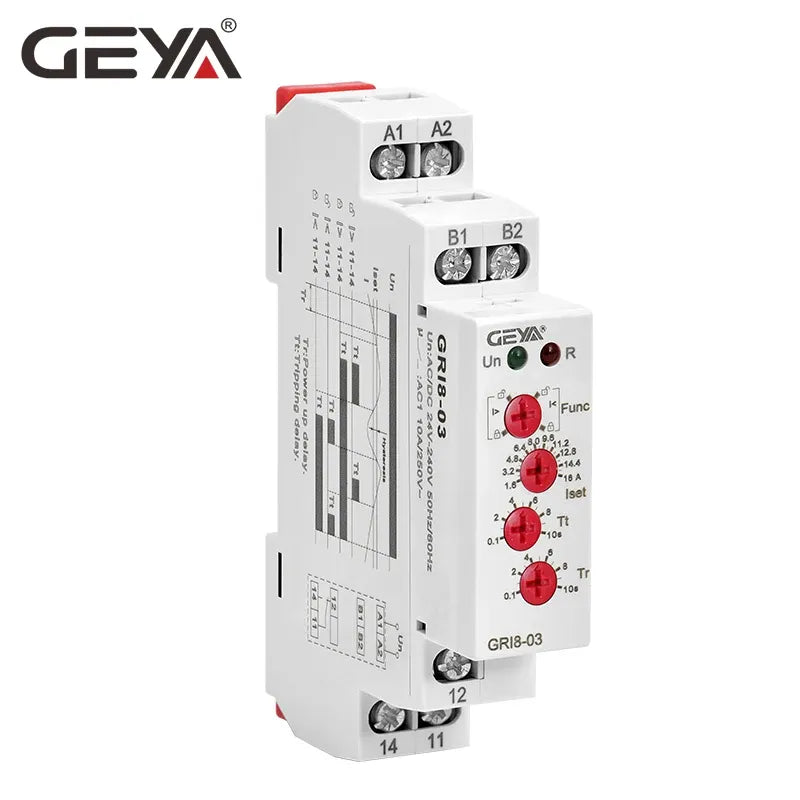

GRI8-03 Overcurrent or Undercurrent Protection
GRI8-04 Overcurrent and Undercurrent Protection

Applications
    -Serves for monitoring of heating in rail-switches, heating cables, consumptionof one-phase motors, indicates current flow.

Function Features
    -Adjustable delay 0.5 - 10 sto eliminate short current peaks.
    -Flexible adjustment by potentiometer, choice of 6 ranges:
    AC 0.05-0.5A; AC 0.1-1A; AC 0.2-2A; AC 0.5-5A; AC 0.8-8A; AC 1.6-16A
    -Possible to use for current scanning from current transformer.
-Output 1SPDT 10A/AC1
    -Universal supplyAC 24 - 240 V or DC 24 V.
    -Relay status is indicated by LED.
    -1-MODULE,DIN rail mounting.

Technical Data
Technical Data
x
Function Over/under
Supply terminals A1-A2
Rated supply voltage AC/DC 24V-240V
Rated supply frequency 50/60Hz,0
Burden max 2VA
Current range(AC) 0.5A,1A,2A,5A,8A,16A
Time delay adjustable 0.1-10 s
Power up delay adjustable 0.1-10 s
Setting accuracy 10%
Temperature dependancy < 0.1 % /°C
Limit values tolerance 5% (10% for 0.05-0.5A range)
Hysteresis 5%
Supply voltage tolerance -15%+10%
Supply indication green LED
Time setting potentionmeter
Time deviation 10%-mechanical setting
Repeat accuracy <1 %
Temperature coefficient 0.05%/"C,at-20°C(0.05%°F, at 68°F)
Output 1XSPDT
Current rating 10A/AC1
Switching voltage 250VAC/24VDC
Min. breaking capacity DC 500mW
Output red LED
Mechanical life 1×107
Electrical life(AC1) 1×105
Reset time max.200ms
Operating temperature -20°C to +55°C (-4°F to 131°F)
Storage temperature -35°C to +75°C (-22°F to 158°F)
Mounting/DIN rail Din rail EN/IEC 60715
Protection degree IP40 for front panel/IP20 terminals
Operating position Any
Overvoltage cathegory III.
Pollution degree 2
Max.cable size(mm) sold wire max.1X2.5or 2x1.5/with sleeve max. 1x2.5(AWG 12)
Dimensions 90×18×64mm
Tightening torque 0.8Nm
Weight 69g
Standards IEC60947-5-1
