Description

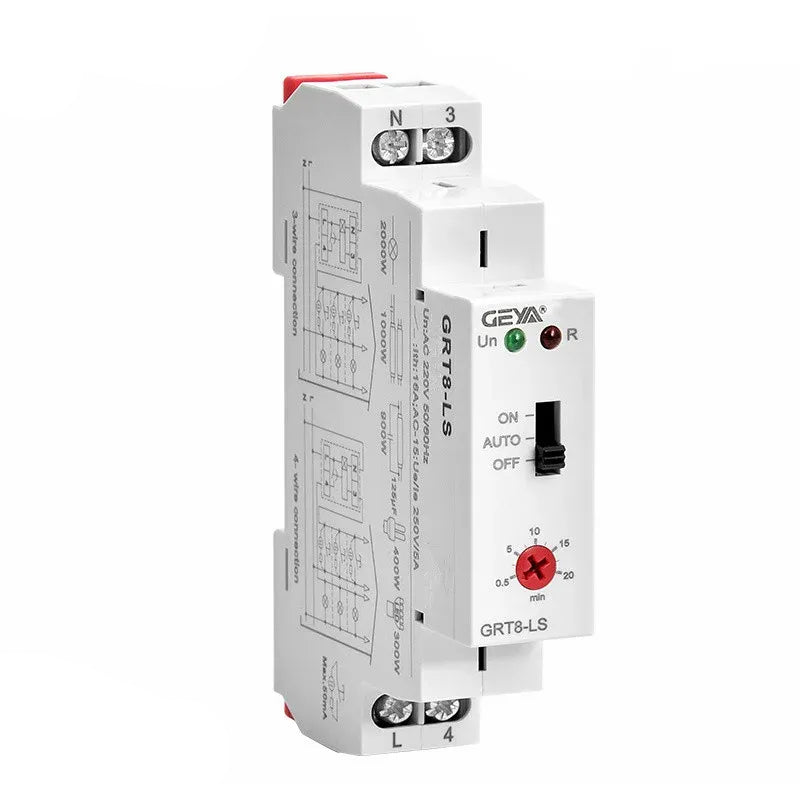

xThe GRT8-LS/LM 16A 230VAC Din Rail Staircase Switch provides precise timing control with a user-friendly design. Its Delay functionality ensures accurate and consistent performance in various applications.
Â
The GRT8-LS/LM 16A 230VAC Din Rail Staircase Switch offers several key features and benefits:
Key Features:
- 16A Load Capacity: Can handle high current loads, making it suitable for various lighting applications.
- 230VAC Operation: Designed for standard voltage systems, ensuring compatibility with most household and commercial electrical systems.
- Din Rail Mounting: Easy installation on standard Din rails, facilitating quick setup in electrical panels.
- Staircase Lighting Function: Specifically designed for controlling lights in staircases and corridors, allowing for automatic light control based on movement.
- Compact Design: Space-efficient, allowing for multiple units to be installed in limited panel space.
Benefits:
- Energy Efficiency: Automates lighting, reducing energy consumption by ensuring lights are only on when needed.
- Safety: Enhances safety in stairways and corridors by providing illumination only when people are present, reducing the risk of accidents.
- Convenience: Simplifies lighting control in multi-level buildings, providing a user-friendly solution for stairway lighting.
- Reliability: Built for durability and consistent performance, ensuring long-term operation without frequent maintenance.
- Flexibility: Suitable for various applications, from residential to commercial settings, making it a versatile choice for lighting control.
Â
Technical Specifications:
- Model: GRT8-LS/LM 16A 230VAC Din Rail Staircase Switch
- Function: delay off reacting to contact switchingÂ
- Supply Voltage: AC 230V(50-60Hz)
- Time Range: AUTO: 0.5s-20min ON OFF
- Contacts: 1×SPDT
- Mounting: Din rail EN/IEC 60715
- Output Indication: Red LED
- Supply Indication: Green LED
- Dimensions: 90×18×64mm
- Weight: 61g
- Standards: EN 61812-1,IEC 60669-2-3,IEC60947-5-1
Â
Order Your GRT8-LS/LM 16A 230VAC Din Rail Staircase Switch Today!
Experience the reliability and precision of the GRT8-LS/LM 16A 230VAC Din Rail Staircase Switch
Â
Function Features
 -Operating system switch:
 ON - output is constantly ON .
 AUTO - timing according to adjusting by potentiometer in range 0.5 - 20 min
 OFF - output is constantly OFF.
 -Voltage range: AC 230 V, clamp terminals.
Â
Technical Data
x| Function | delay off reacting to contact switching |
| Supply terminals | A1-A2 |
| Voltage range | AC 230V(50-60Hz) | Power input | AC max.6VA/1.3W |
| Supply voltage tolerance | -15%+10% |
| Supply indication | green LED |
| Time ranges | auto 0.5s -20min ON OFF |
| Time setting | potentionmeter |
| Time deviation | 10%-mechanical setting |
| Repeat accuracy | 0.2%-set value stability |
| Minimum power time | 200ms |
| Glow tubes connetions | Yes(N-3 or L-3) |
| Max.amount of glow lamps | 230V,max.75pcs(Measured with glow lamp 0.68mA/230V AC) | Temperature coefficient | 0.05%/℃,at=20℃(0.05%℉，at=68℉) | Output | 1XSPDT | Current rating | 16A (AC1) | Switching voltage | 250VAC/24VDC | Min. breaking capacity DC | 500mW | Output | red LED | Mechanical life | 1×107 | Electrical life(AC1) | 1×105 | Reset time | max.200ms | Operating temperature | -20°C to +55°C (-4°F to 131°F) | Storage temperature | -35°C to +75°C (-22°F to 158°F) | Mounting/DIN rail | Din rail EN/IEC 60715 | Protection degree | IP40 for front panel/IP20 terminals | Operating position | Any | Overvoltage cathegory | III. | Pollution degree | 2 | Max.cable size(mm) | sold wire max.1X2.5or 2x1.5/with sleeve max. 1x2.5(AWG 12) | Tightening torque | 0.8Nm | Dimensions | 90×18×64mm | Weight | 61g | Standards | EN 61812-1,IEC 60669-2-3,IEC60947-5-1 |
