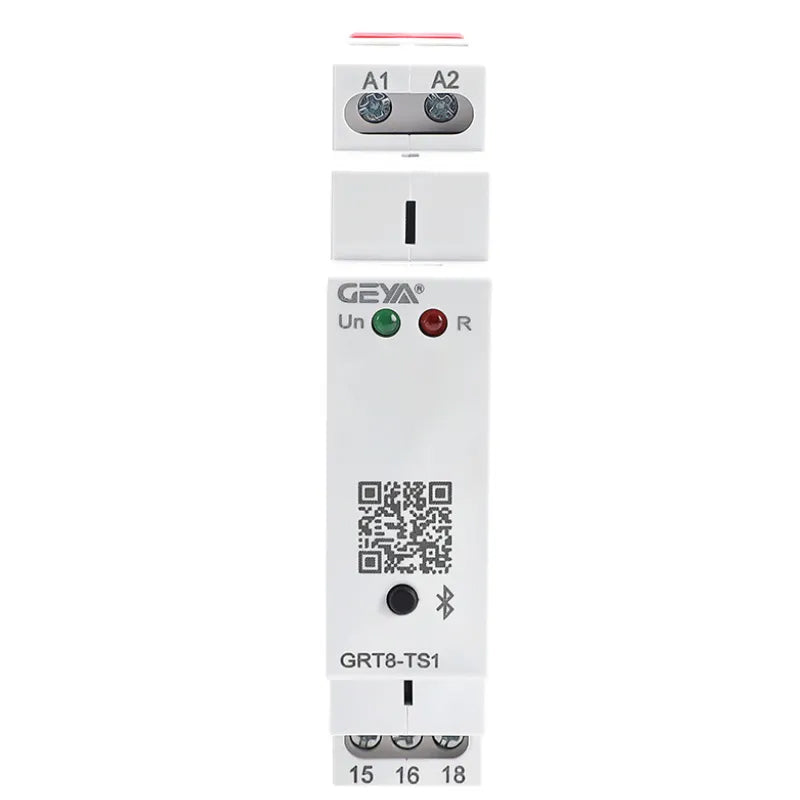

GRT8-TS 16A AC/DC24V-240V Mobile Control APP Bluetooth Control Time Relay
- $48.99
- $48.99
- Unit price
- per
Couldn't load pickup availability
Available 24/7 at
store@cngeya.com
Couldn't load pickup availability
GRT8-TS 16A AC/DC24V-240V Mobile Control APP Bluetooth Control Time Relay can be used for industrial equipment, lighting control, heating element control, motor and fan control, and regularly turn on and off loads.
Â
The GRT8-TS 16A AC/DC 24V-240V Mobile Control APP Bluetooth Control Time Relay offers several key features and benefits:
Overall, its combination of versatility in voltage range and mobile app control makes it a powerful tool for automation and control in various environments.
Â
Order Your GRT8-TS 16A AC/DC24V-240V Mobile Control APP Bluetooth Control Time Relay Today!
Experience the reliability and precision of the GRT8-TS 16A AC/DC24V-240V Mobile Control APP Bluetooth Control Time Relay
Â
Function Features
 - The relay is set through Bluetooth connection of mobile phone app, which
 is simple and easy to operate.
 - 8 / 16 group timing setting.
 - It has two working modes: automatic and manual.
 - It has AC / DC 24v-240v ultra wide working voltage.
Â
Function | Bluetooth time control relay |
Supply terminals | A1-A2 |
Voltage range | AC/DC 24-240V 50Hz |
Burden | AC 0.09-3VA/DC 0.05-1.7W |
Number of timers | 8-ON/ 8- OFF, 2×8-ON /2×8 -OFF |
Time setting | APP(Bluetooth connectivity) |
Time daviation | ±2s/day |
Supply voltage tolerance | -15%+10% |
Supply indication | green LED | Output | 1XSPDT | Min. breaking capacity DC | 500mW | Output | red LED | Mechanical life | 1×107 | Electrical life(AC1) | 1×105 | Reset time | max.200ms | Operating temperature | -20°C to +55°C | Storage temperature | -35°C to +75°C | Mounting/DIN rail | Din rail EN/IEC 60715 | Protection degree | IP40 for front panel/IP20 terminals | Operating position | Any | Overvoltage cathegory | III. | Pollution degree | 2 | Max.cable size(mm) | 1×2.5mm 或 2×1.5mm 0.4N·m | Dimensions | 90×18×64mm | Weight | W240-62g,A230-60g, W240-82g,A230-81g | Standards | GB/T14048.5,IEC60947-5-1,EN 61812-1 |
