Description

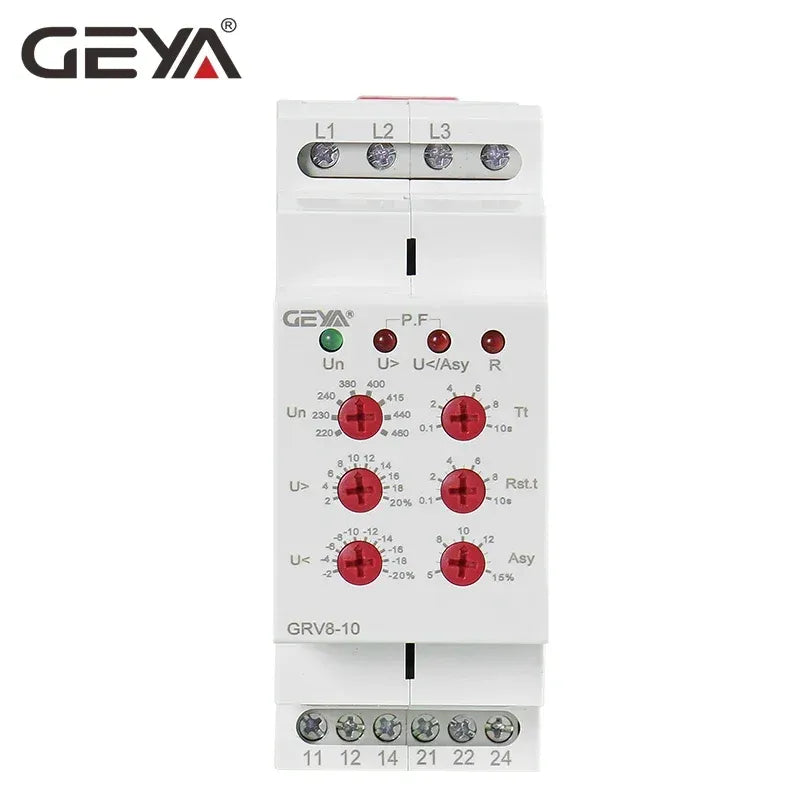

xGRV8-10 3 Phase Voltage Relay with Reset Time 0.1s-10s
Key Benefits:
- Reliable Protection: Safeguards motors and electrical systems from damage caused by voltage fluctuations, ensuring smooth and efficient operation.
- Enhanced System Safety: Monitors phase voltage variations, protecting sensitive equipment from voltage surges, drops, and imbalances.
- Customizable Reset Time: Adjustable reset time (0.1s-10s) offers flexibility, allowing for fine-tuning based on specific system needs.
- Increased Equipment Lifespan: Prevents potential electrical faults, reducing wear and tear on machinery and prolonging its service life.
Features:
- Wide Voltage Range: Capable of handling various voltage levels to ensure compatibility with different industrial applications.
- Fast Response Time: Quick detection of voltage abnormalities for immediate protection, minimizing risk to machinery.
- Durable Construction: Built to withstand harsh environments, ensuring long-lasting performance even in demanding conditions.
- Easy Installation: Simple to integrate into existing systems, saving time and reducing installation complexity.
- Adjustable Reset Time (0.1s-10s): Provides control over the relay’s reset time, allowing for tailored protection settings to suit different operational needs.
Ideal for industries requiring robust voltage protection, the GRV8-10 3 Phase Voltage Relay is an essential component for maintaining system stability and protecting critical equipment.
Technical Specifications:
- Model: GRV8-10 3 Phase Voltage Relay
- Function: Monitoring 3-phase voltage
- Current rating: 8A/AC1
- Reset time: 0.1s-10s
- Measurement error: ≤1%
- Contacts: 2×SPDT
- Mounting: Din rail EN/IEC 60715
- Output Indication: Red LED
- Supply Indication: Green LED
- Dimensions: 90×36×64mm
- Weight: 100
- Standards: EN 61812-1,IEC60947-5-1
Function Features
-Controls its own supply voltage(True RMS measurement).
-Set 8-level rated operating voltage through knob.
- Measuring frequency range:45Hz-65Hz.
- Voltage measurement accuracy<1%.
- Relay status is indicated by LED.
- 1-MODULE,DIN rail mounting.
Order Your GRV8-10 3 Phase Voltage Relay With Reset Time 0.1s-10s Today!
Experience the reliability and precision of the GRV8-10 3 Phase Voltage Relay With Reset Time 0.1s-10s
Technical Data
x| Function | Monitoring 3-phase voltage |
| Monitoring terminials | L1-L2-L3-N |
| Supply terminals | L1-L2-L3-N |
| Voltage range | 127-132-138-220-230 -240-254-265(P-N) | Rated supply frequency | 45Hz-65Hz |
| Measuring range | 101V-318V |
| Threshold adjustment voltage | 2%-20%of Un selected |
| Hysteresis | 2% |
| Phase failure value | 70% of Un selected Min=165V | Adjustment of asymmetry threshold | 5%-15% | Time delay | Adjustable 0.1s-10s,10% | Measurement error | ≤1% | Reset time | Adjustable 0.1s-10s,10% | Konb setting accuracy | 10% of scale value | Supply idication | green LED | Output indication | red LED | Output | 2×SPDT | Current rating | 8A/AC1 | Switching voltage | 250VAC/24VDC | Min.breaking capacity DC | 500mW | Temperature coefficient | 0.05%/℃,at=20℃(0.05%℉，at=68℉) | Mechanical life | 1×107 | Electrical life(AC1) | 1×105 | Operating temperature | -20°C to +55°C (-4°F to 131°F) | Storage temperature | -35°C to +75°C (-22°F to 158°F) | Mounting/DIN rail | Din rail EN/IEC 60715 | Protection degree | IP40 for front panel/IP20 terminals | Operating position | Any | Overvoltage cathegory | III. | Pollution degree | 2 | Max.cable size(mm) | solid wire max.1×2.5or 2×1.5/with sleeve max.1×2.5(AWG 12) | Tightening torque | 0.4Nm | Dimensions | 90×36×64mm | Weight | 100g |
