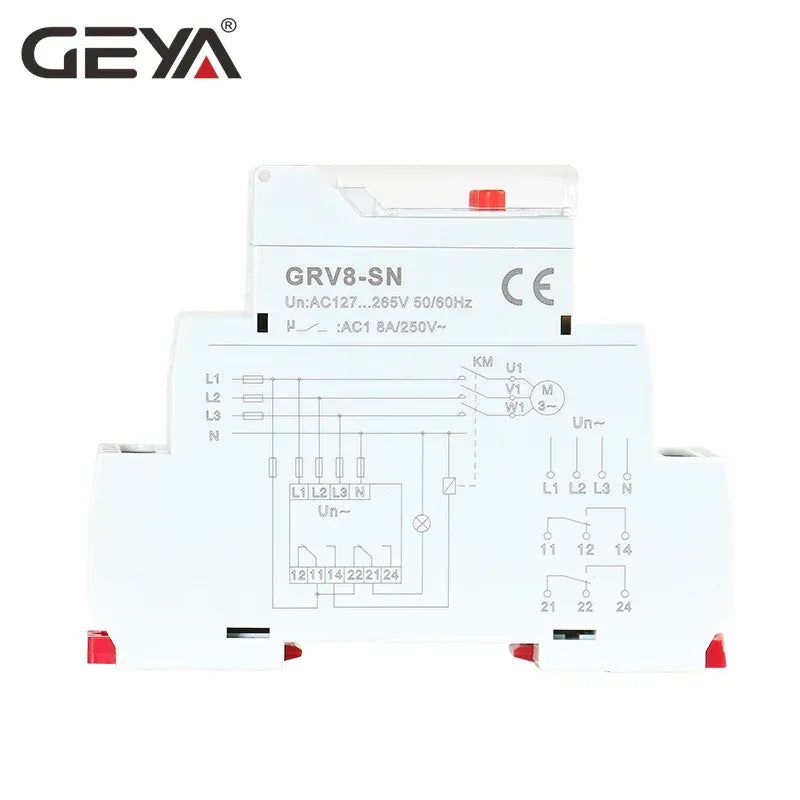

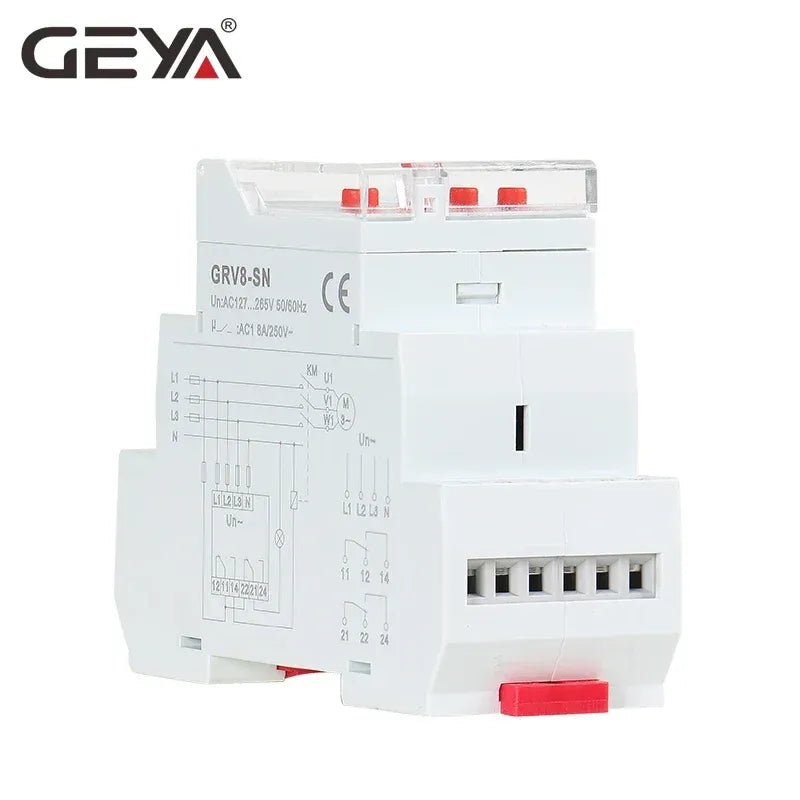

GRV8-SN 8A 2SPDT 3 Phase Voltage Relay – Reliable Voltage Protection for Your Electrical Systems

Ensure optimal performance and protection for your industrial or commercial electrical systems with the GRV8-SN 8A 2SPDT 3 Phase Voltage Relay. This advanced voltage relay is designed to provide critical overvoltage, undervoltage, and phase failure protection, making it an essential component for safeguarding your equipment and preventing costly downtime.

Key Features:

3 Phase Voltage Protection: The GRV8-SN provides complete protection to a 3-phase system, which constantly monitors voltage levels within the safety operational zone. It prevents electrical damage from voltage fluctuations, phase failures, or imbalances.

8A Load Capacity: Its robust 8A load rating makes this relay ideal for many applications, from industrial machinery to HVAC systems, to give them the reliability they require in extreme conditions.

2 SPDT Contacts: The relay includes two SPDT contacts that allow for versatile control options. It thus allows both normally open and normally closed connections, giving you the flexibility to tailor its operation to your specific needs.

Compact & Robust Design: The GRV8-SN is designed to be rugged and withstand the most hostile industrial ambient conditions. Its compact form factor makes it easy to integrate into existing control panels, thus saving space.

Adjustable Voltage Settings: Adjust the sensitivity of the relay to overvoltage and undervoltage conditions. With its adjustable settings, you can fine-tune the protection to suit the unique voltage requirements of your application.

Easy to Install and Operate: The user friendly design allows for a rather uncomplicated installation and calibration process of the relay. It contains intuitive controls with clear light indicators for quick status indication of the system.

Areas of application

The GRV8-SN 8A 2SPDT 3 Phase Voltage Relay is perfectly applicable in most voltage protective applications where reliable voltage protection may be crucial:

Industrial Equipment: Provides the required safety to avoid damaging costly motors, pumps, and other heavy machinery.

HVAC Systems: Prevents AC and heating systems from possible malfunctions.

Power Distribution Systems: Proper working of transformers, generator sets, and other key electrical installations becomes certain.  Why Buy GRV8-SN 8A 2SPDT 3 Phase Voltage Relay?

Safeguarding costly equipment: Safeguarding costly equipment by avoiding their deterioration because of surges or loss of voltage Ensuring enhanced operational reliability of the system because one is assured about a timely actuation.

Long-Term Reliability: Designed for long service in demanding industrial environments, minimizing the need for frequent replacement.

For guaranteed longevity and efficiency in your electrical systems, look no further than the GRV8-SN 8A 2SPDT 3 Phase Voltage Relay. Safeguard your investment by selecting this quality, high-performance relay to ensure voltage protection with assurance.

Technical Specifications:

• Model: GRV8-SN 2SPDT
• Function: Monitoring 3-phase voltage

• Current rating: 8A/AC1
• Tightening torque: 0.4Nm
• Measurement error: ≤1%
• Measuring range: 70V-400V
• Contacts: 2×SPDT

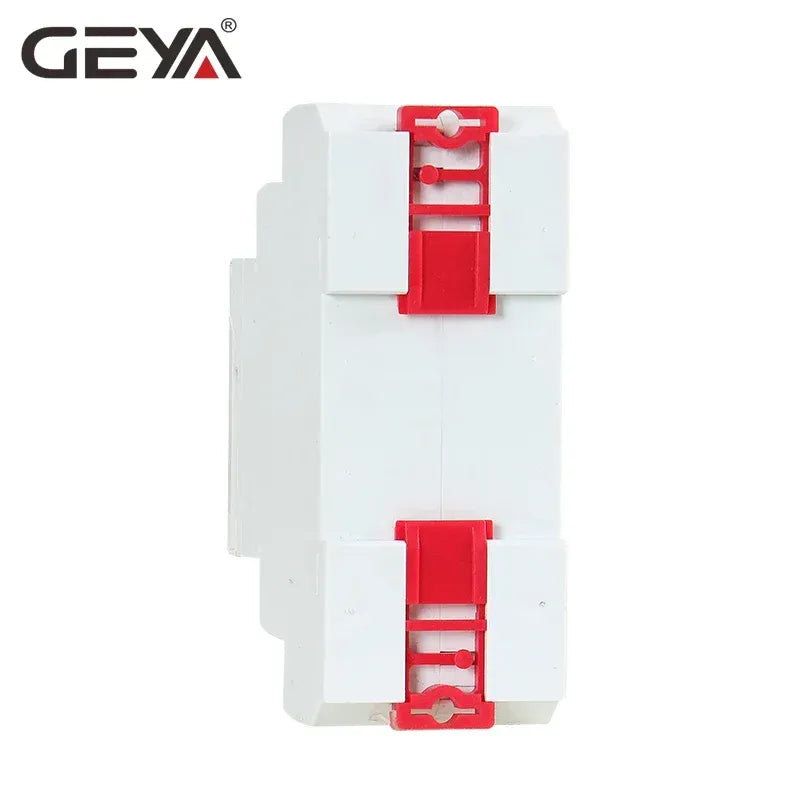

• Mounting: Din rail EN/IEC 60715
• Output Indication: Red LED
• Supply Indication: Green LED
• Dimensions: 90×36×64mm
• Weight: 100
• Standards: EN 61812-1,IEC60947-5-1

Function Features
 -Controls its own supply voltage(True RMS measurement).

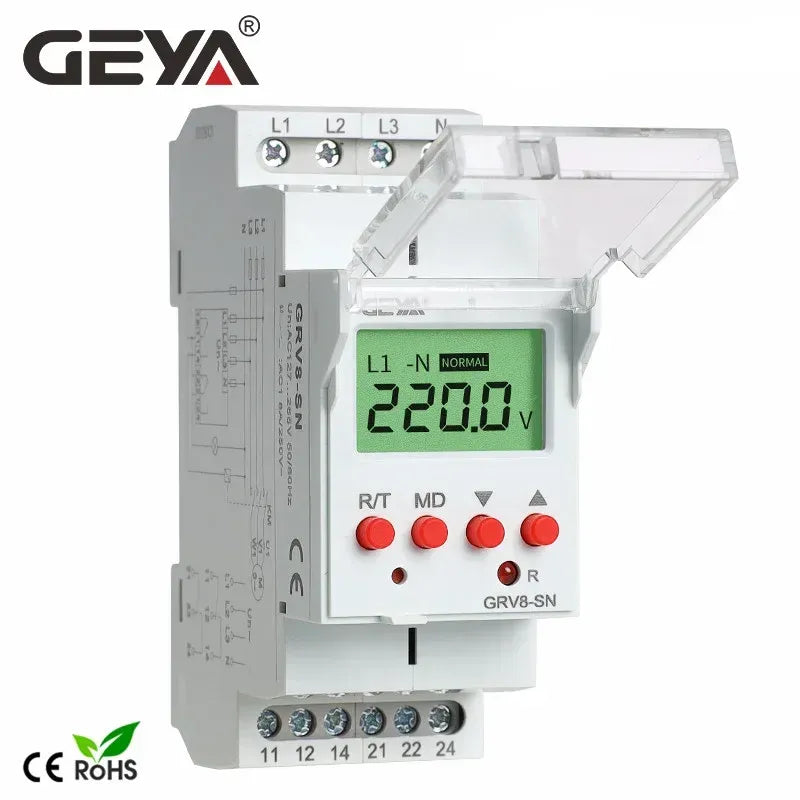

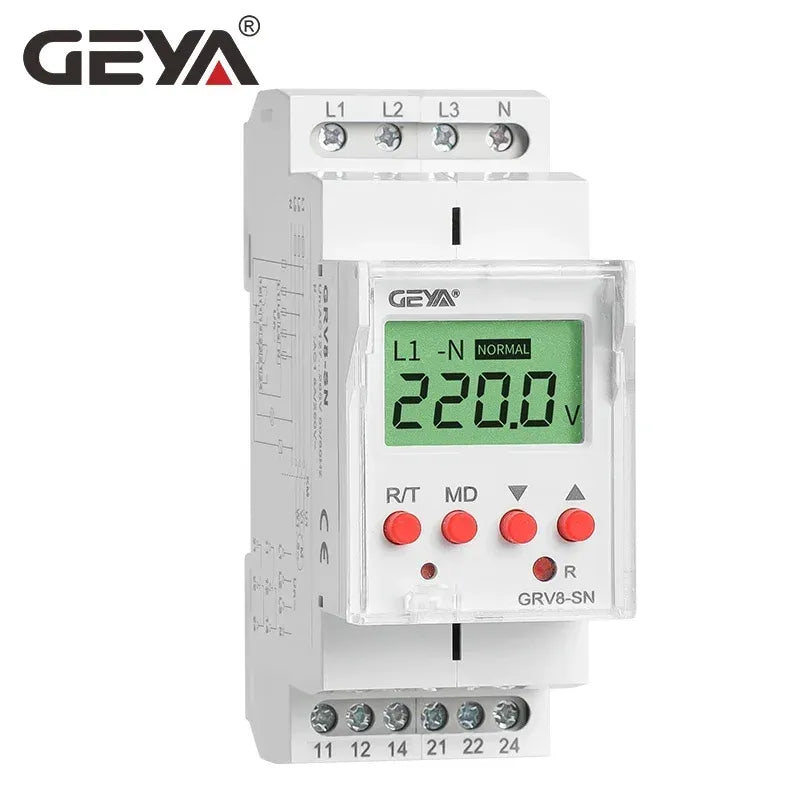

 -LCD display.
 - Measuring frequency range:45Hz-65Hz.
 - Voltage measurement accuracy<1%.
 - 2-MODULE,DIN rail mounting.

Order Your GRV8-SN 8A 2SPDT 3 Phase Voltage Relay Today!

Experience the reliability and precision of the GRV8-SN 8A 2SPDT 3 Phase Voltage Relay
